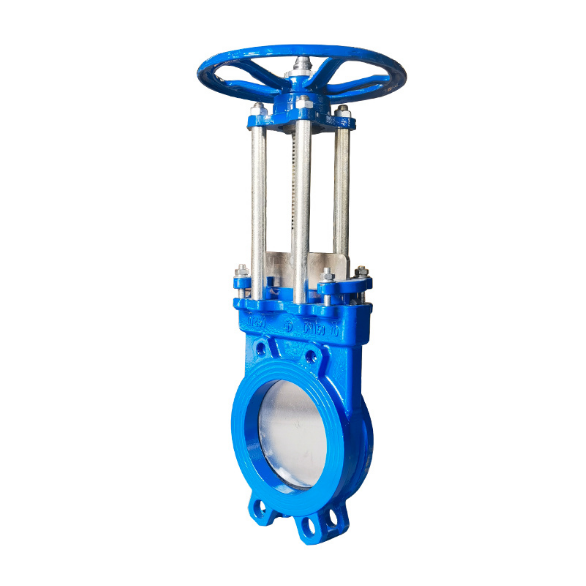

Gietijzeren handmatige mesgatklep - DN200

Key Features

· Material: High-strength cast iron body with stainless steel (SS304/SS316) blade for superior wear and corrosion resistance.

· Size: DN200 (8") – compliant with ISO 6708 and ASME B16.10 standards.

· Pressure Rating: PN10/PN16, optimized for low-to-medium pressure systems.

· Sealing System: Resilient EPDM/NBR seals or optional metal-reinforced seals for tight shut-off in harsh conditions.

· Operation: Manual handwheel or lever actuator for easy, low-torque operation; non-rising stem design saves vertical space.

· Connection Type: Flanged ends (EN 1092-2, ASME B16.5, or customized to requirements).

· Blade Design: Ultra-thin, sharp-edged blade cuts through thick slurries and prevents particle buildup.

· Standards: ISO 16135, EN 12570, and tested per API 598 for leakage integrity.

Advantages

✔ Clog-Free Performance: Blade design minimizes blockage risk in slurry or fibrous media.

✔ Low Maintenance: Simple structure allows easy disassembly and seal replacement.

✔ Leak-Tight Shut-Off: Dual-directional sealing ensures reliability in pressurized systems.

✔ Durable Construction: Cast iron body with anti-corrosion coatings for extended service life.

Optional Customizations

· Stem Extensions for buried or elevated installations.

· Epoxy or PU Coating for enhanced chemical and abrasion resistance.

· Position Indicators for visual open/close status confirmation.

· Locking Device to prevent unauthorized operation.

Technical Specifications

· Max. Temperature: -20°C to +120°C (dependent on seal material).

· Face-to-Face: ISO 5752 Series 20 (standard).

· Testing: Hydrostatic shell test (1.5x PN), seat leakage test (ISO 5208 Rate A).

Applications

· Slurry and wastewater pipelines.

· Mining and mineral processing.

· Pulp and paper industries.

· Chemical and power plants.

Certifications and Global Reach

At WIVO VALVES, we prioritize quality assurance and regulatory compliance. Our Manual non-rising stem knife gate valves are rigorously tested and certified by prominent industry bodies to meet international safety and quality standards. We have earned a reputation for reliability and excellence, exporting our valves to clients across the globe. Our extensive certifications reflect our unwavering commitment to providing products that deliver outstanding performance and safety. With a strong global presence, WIVO VALVES is a trusted supplier for many leading brands and industries. Partnering with us ensures access to high-quality DIN Globe Valves backed by comprehensive support and service.
